| Standard |
Είσοδος ή εγγραφή για προβολή διαθεσιμότητας και τιμές χονδρικής
| MODEL |

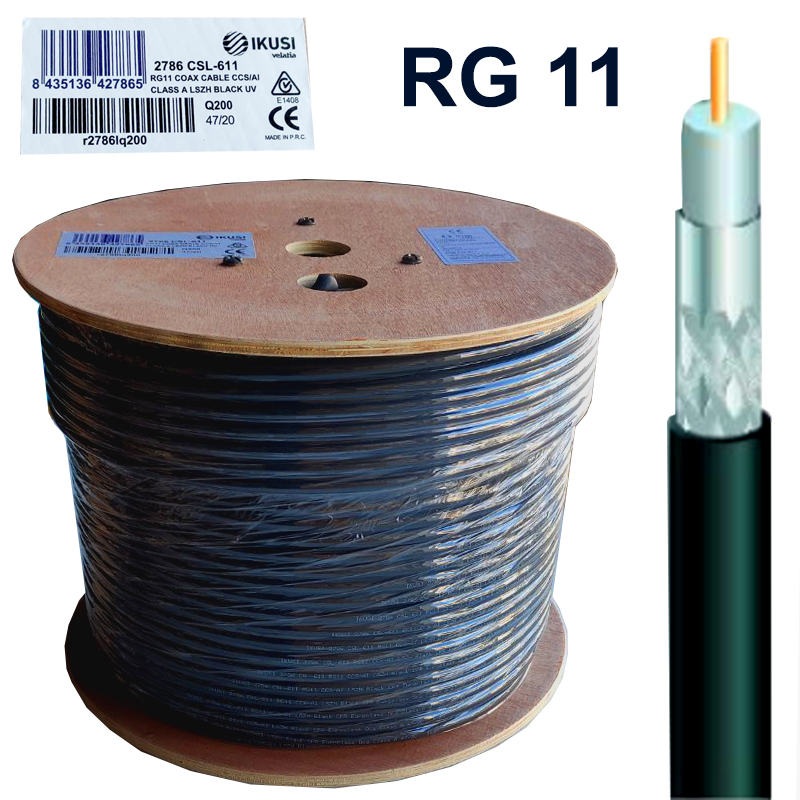

CSL-611 |
| Ref. |
2786 |
| Standard |
EN 50117-2-1 |
| Type RG |
RG11 |
| Interior Exterior |
Interior Exterior |
| Euroclass CPR |
DCA |
| Shielding class |
A class |
Inner conductor
Diameter |
mm |
CCS
1.63 |
Dielectric
Diameter |
mm |
PE
7.2 |
Sheet
Mesh |
|
Al / PET / Al
To the |
| Number of threads in the mesh |
|
112 |
External cover
Diameter |
mm |
LSZH black
10.1 |
| Impedance |
Ω |
75 |
Attenuation / 100m
5 MHz
50 MHz
200 MHz
300 MHz
470 MHz
862 MHz
1000 MHz
1750 MHz
2150 MHz |
dB |
1.3
3.5
6.0
7.5
9.5
12.5
14.5
18.0
20.0 |
Dimensions (cm)
Packed Weight (kg) |
55.5 x 28 x 27.5
18.5 |
| Coiled supply |
1x 200 m |
|
