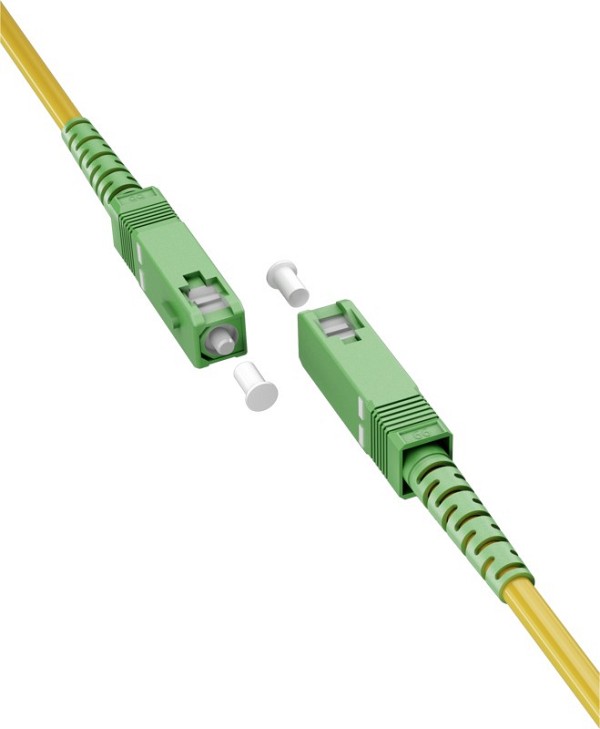

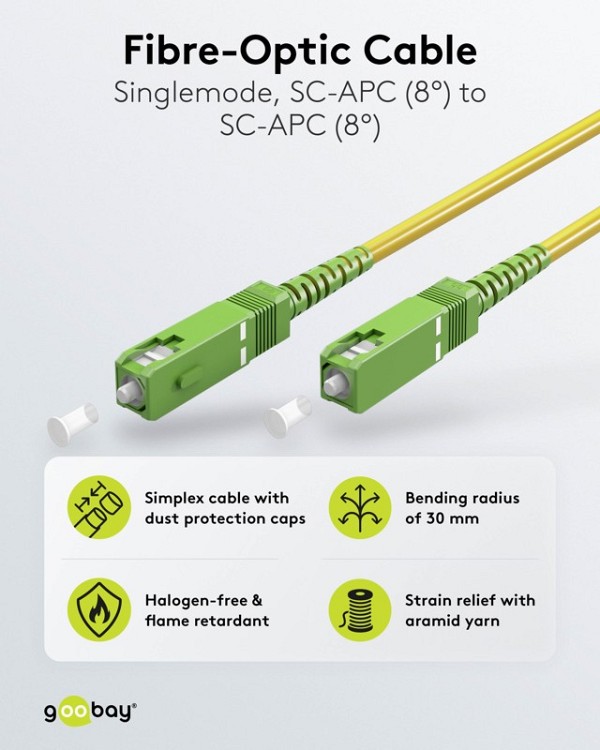

Οptical fibre (FOC), SC-APC (8°) male > SC-APC (8°) male, halogen-free cable sheath (LSZH)

The patch cable is suitable for private and industrial applications, including fibre to the home (FTTH), and is compatible with the FTTH options of a wide range of telecom providers. Thanks to an optimised bend radius of the fibre optic cable, space-saving installation is possible without increasing attenuation and risking interference.

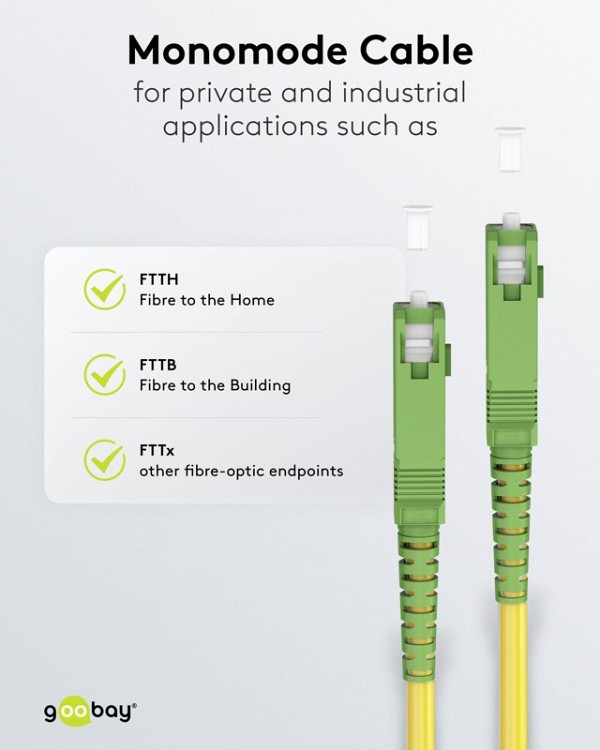

• mono-mode fibre optic cable designed for connection types such as FTTH, FTTB, FTTx, for use at home, in the office, in data centres etc.
• the patch cord forms the connection between the house transfer point and the Optical Network Terminal (ONT) indoors
• optical fibre cable for up to 100 Gbit/s that is bend-optimised and space-saving with a minimum bending radius of 30 mm (static)
• LSZH-compliant: cable sheath is halogen-free and flame-retardant according to IEC 60754 2, IEC 60332 1 and IEC 61034
• strain relief reinforced with aramid yarn provides extra stability
• equipped with dust protection caps, connector: Simplex, fibre type: OS2, SM singlemode 9/125µm according to ITU-T G.657.A2
• individual test protocol with measurement of return loss and insertion loss

Technical specifications
Connections
Kink protection yes
Connection 2, type SC-APC (8°) male
Connection, type SC-APC (8°) male

Cable
Optical fiber core diameter 9 µ
Optical fiber sheath diameter 125 µ
Wavelength 1310 nm
Cable fiber type Glass Fibre G.657.A2
Specification Singlemode (OS2) Yellow
Cable sheath diameter (approx.) 3 mm
Cable type simplex cable
Cable length 20 m
bending radius > 30 mm
LSZH compliant yes

General
Color yellow
Operating temperature from -40 °C
Operating temperature up to 85 °C
Packaging type Bulk

Dimensions / Weight
Consumption Unit 1 pc. in polybag
